Solutions for Every Reliability Challenge

Built to Test. Engineered to Last.

WLR for GaN SiC 6/8 inch

High-precision wafer-level system for automated reliability testing of GaN, SiC, and other high-power semiconductor devices.

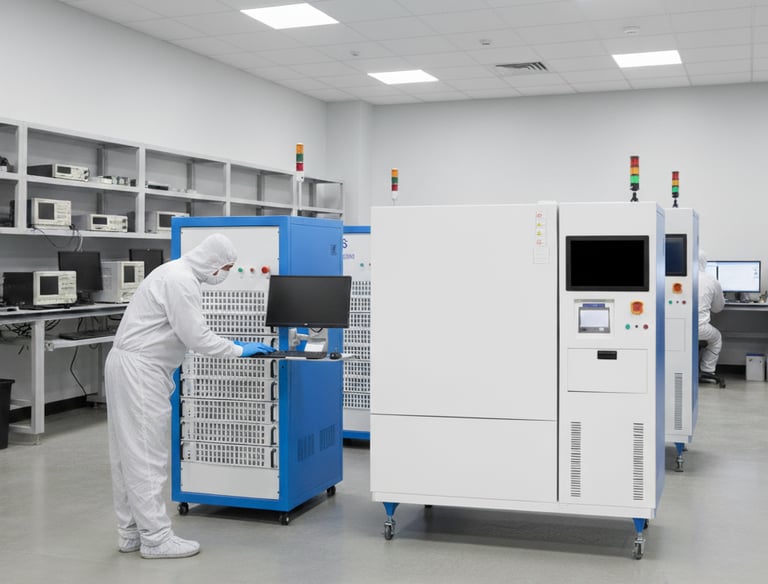

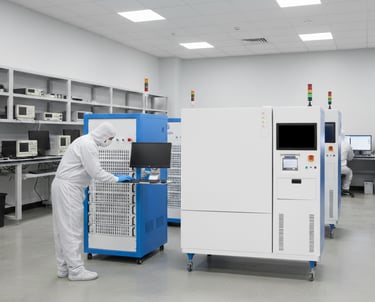

Dynamic HT HV Pulse Control

High-temperature, high-voltage, Pulse Control system with ultra-precision for accelerated reliability screening of power semiconductor devices.

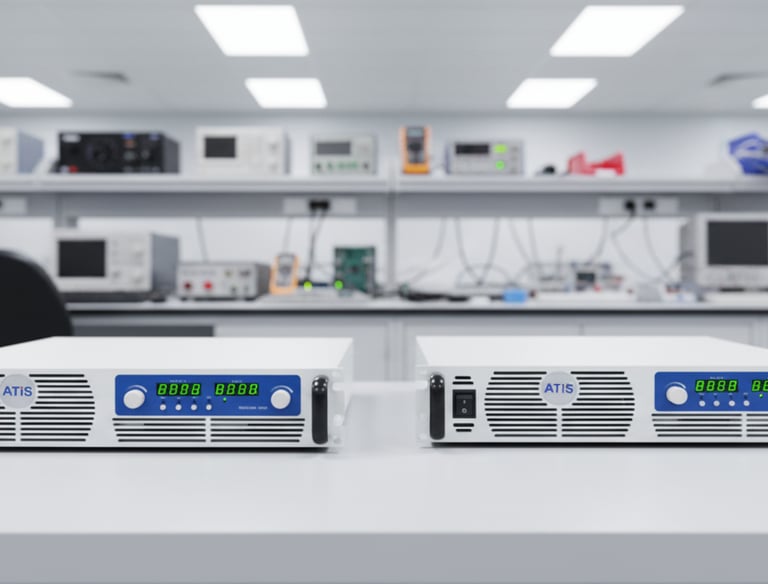

Compact, high-efficiency programmable DC power supply delivering up to 5000 V or 300 A for demanding applications.

Elite Programmable DC Power Supply

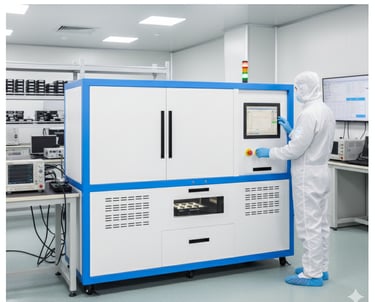

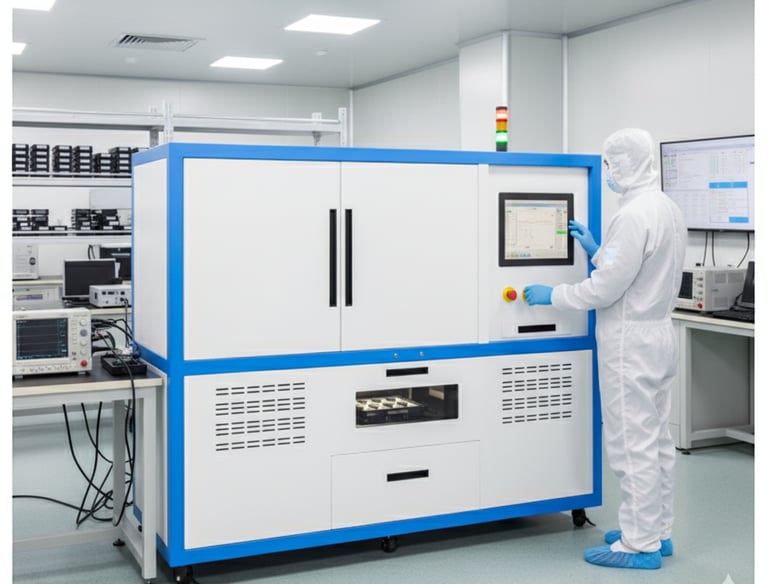

Wafer-level reliability test system

The system is designed for electrical reliability testing of 6- and 8-inch GaN and SiC wafer-level devices, fully compliant with JEDEC reliability standards. It delivers high-precision, high-voltage output with accurate current measurement and precise temperature control. All test data is automatically logged, allowing users to generate experiment reports and wafer map diagrams in multiple export formats.

Add Product

Easily upload images and enter product details here.

Product Features

Highlight key functionalities in clear bullet points.

Function

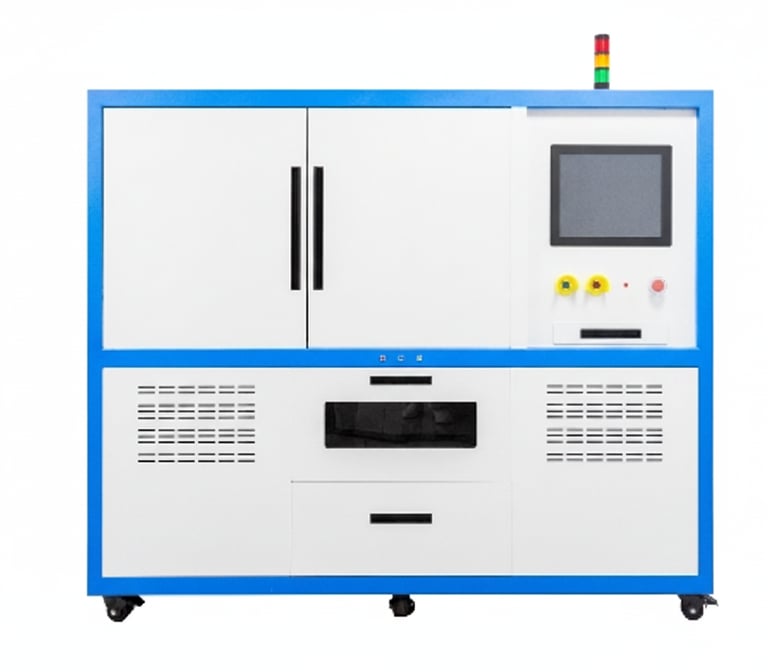

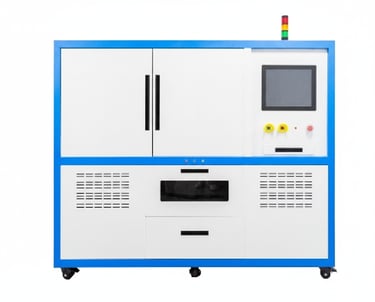

Customized High-Temperature Semi-Automatic Probe Station
Supports simultaneous burn-in testing of up to five wafers under controlled high-temperature conditions.
Each wafer die features independent protection, with real-time control of over-current and over-voltage limits.
Includes nitrogen protection to prevent wafer oxidation, with automatic overvoltage protection during gas filling.
Compatible with interchangeable burn-in boards or probe cards to accommodate various device packages.
Provides wafer contact detection, along with real-time temperature and pressure monitoring.
Supports standard HTGB, HTRB, and other burn-in test modes, with automated measurement and analysis of parameters such as Vth, IDS, and IGS.
Features built-in wafer map configuration, real-time data visualization, and historical data query functions.
Can connect to a centralized control platform (Smart Core Protection Cloud) and be custom-integrated with MES systems for seamless data management.
